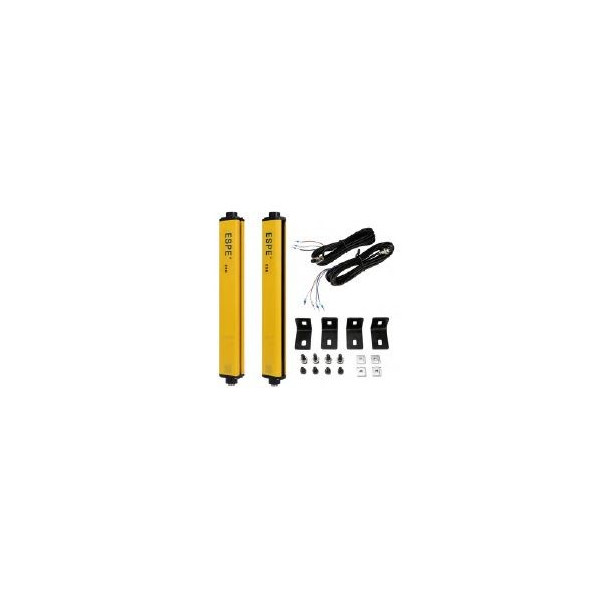

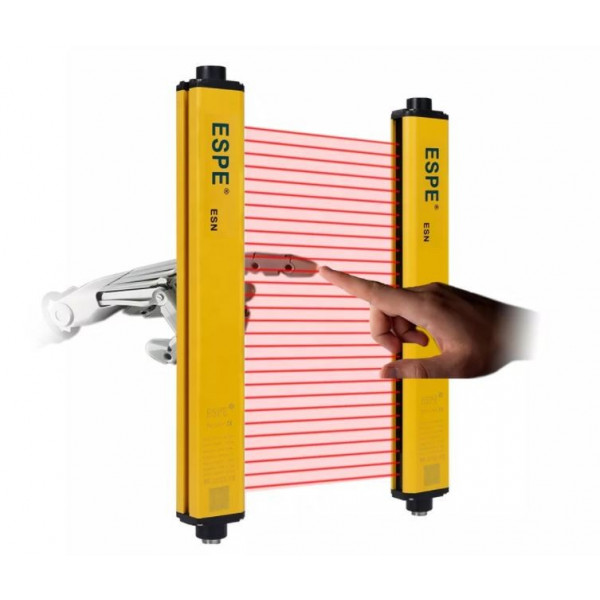

ESPE ESN0620 Safety light curtain (Cortina de seguridad) 100mm
$2,763.70
Tax shipping
Precios Más IVA
$145.00 USD
SKU
SKU ESPEESN0620
-
Todos los precios están en pesos mexicanos y no incluyen IVA
-
Transacciones seguras
-
Envíos a todo México
-
Política de devolución
Features
1.Reinforced installation brackets adopted, good anti-shock performance, durable.
2. Multi-type of controllers and installation brackets can be chosen.
3. High quality components adopted, with high safety performance and stability.
4. Already passed the national test standard, certificated with utility model patent.
5. One controller can control multi-pairs of sensors.
6. In accordance with GB4584-2007 Technical Standards and Regulations of
National Quality Supervision and Test Center of Casting and Forging Machinery
Application
Well applicable to large-tonnage machines with high speed impact and huge
shake, such as punching machine, plate shearing machine, wheel-type punching
machine and press brake, etc.
| Protective Height | 100mm (customized) | NO. of beam | 6 (can be customized) |
| Beam Gap | 20mm | Resolution | 15/25/45mm |
| Power Volatge | DC24V ±20% | Output Current | ≤200mA |
| Watts | <5W | Response Time | <20ms |
| Insulation Resistance | ≥100MΩ | Detection Mode | Thru-beam |
| Sectional area | 35*53mm | Working temperature | -10 °C - 55°C |
| Anti-interference | yes 10000lux | Output type | NPN/ PNP |
| Sensing distance | 0.1-5m (standard), can be customzed in 0.1-20m |
||
SKU ESPEESN0620
2 Artículos
| Imagen | Modelo ESN0620 | SKU ESN0620 | No. of Beams | Beam Gap | Protective Height | Sension Range (Regular) | Cable length | Caton Size | Cross Weight | Envio 3 | Stock | Precio | Agregar al carrito |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
