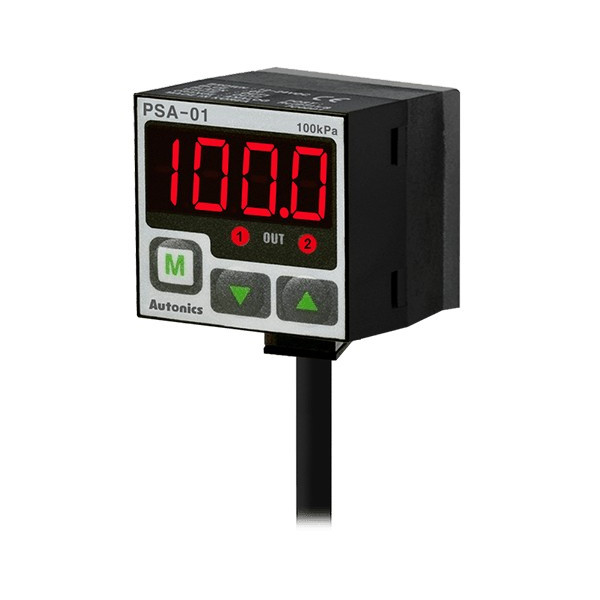

Autonics Serie PSA Sensor digital de presión
$2,740.83
Tax shipping
Precios Más IVA
$143.80 USD
SKU
N/A
-
Todos los precios están en pesos mexicanos y no incluyen IVA
-
Transacciones seguras
-
Envíos a todo México
-
Política de devolución
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
|---|---|
| Pressure port direction | Rear fitting(3-direction) |
| Pressure port | NPT1/8 |
| Connection type | Cable type(cable type cable: 2m) |
| Pressure type | Standard pressure |
| Rated pressure range | 0.0 to 100.0kPa |
| Display pressure unit | kPa, kgf/cm², bar, psi |
| Control output_NPN open collector | NPN open collector |
| Option input/output | Voltage(1-5VDC  ) output |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Protection structure | IP40 |
| Approval |  |
| Control output_Hysteresis | 1-digit fixed(2-digit for psi unit) |
| Control output_Repeat error | ±0.2% F.S. ±1-digit |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn) |
| Weight | Approx. 200g(approx. 120g) |
N/A
| Imagen | Serie PSA | Series PSA SKU | Serie PSA Fluido aplicable | Series PSA Dirección del puerto de presión: | Serie PSA Puerto de presión | Serie PSA Tipo de conexión | Series PSA Tipo de presión | Series PSA Salida de control_colector abierto PNP | Series PSA Fuente de alimentación | Series PSA Consumo de corriente | Series PSA Estructura de protección | Series PSA Envío | Stock | Precio | Agregar al carrito |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
